Multi-Stages Starcyl Air Cylinders
Multi-Stages - NFPA Style Mount
  • Bore size from 1½" to 10".
  • Stroke up to 12".
  • Heavy duty design.
  • 250 PSI Air.
  • Two-Year Warranty.
  • NFPA Style Mount.

FORCE (IN POUNDS AT 100 PSI)

2 stages

3 stages

4 stages

BORE

Extend

Retract

Extend

Retract

Extend

Retract

1 1/2

275

244

452

421

628

598

2

550

519

864

833

1178

1147

2 1/2

903

873

1394

1363

1885

1854

3 1/4

1511

1432

2340

2262

3170

3091

4

2365

2286

3621

3543

4878

4800

5

3779

3700

5742

5663

7705

7627

6

5414

5266

8242

8093

11069

10921

8

9813

9664

14839

14691

19866

19717

Documentation
Cut Away (click on picture to enlarge)

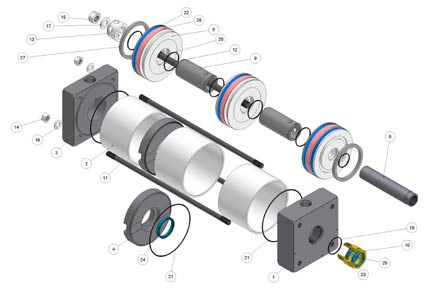

Exploded View (click on picture to enlarge)
Serie Models
Application (click on picture to enlarge)
Mounting Styles
